Spread anchor is used for loads from 0.7 up to 22.0 t and for use in both thin panels and plates.

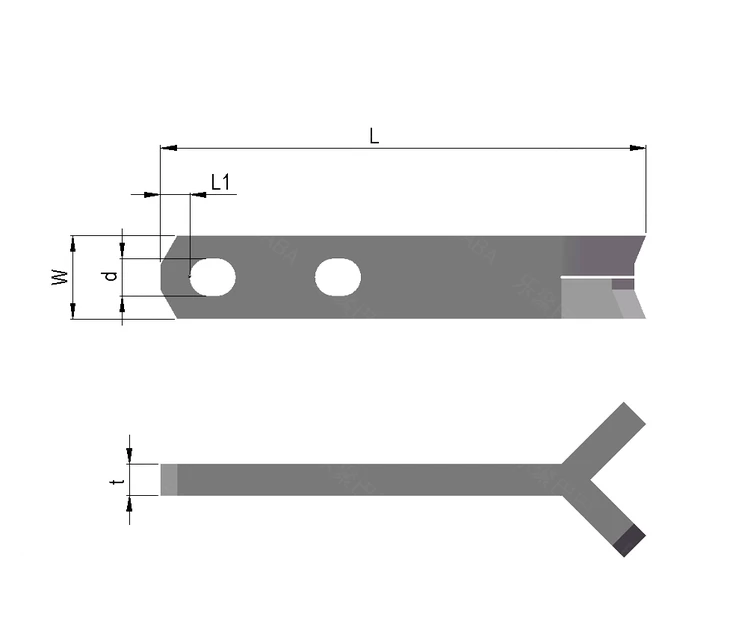

The head of the spread anchor has a hole in which the locking bolt of the lifting eye is mounted and the other holes are for further reinforcement.
The spread anchors are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. The spread anchors meet the requirements for safe lifting and handling of concrete elements.
Surface treatment: plain, hot dip galvanized, electro galvanised or A4 stainless steel Material electro galvanised: S355J2 according to EN 10025 Material A4/A2 stainless steel : 1.4401/1.4301 according to EN 10088
